HuffmanTree Class Reference

Constructs and manages a Huffman tree for encoding. More...

#include <Huffman.hpp>

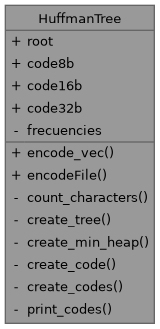

Collaboration diagram for HuffmanTree:

Public Member Functions
void	encode_vec (vector< uint8_t > &vec)
	Encodes a vector of bytes in-place using the Huffman codes.
void	encodeFile (const string &filename)
	Reads a file and encodes its contents using the Huffman tree.

Public Attributes
unique_ptr< HuffmanNode >	root
	Pointer to the root node of the Huffman tree.
unordered_map< uint8_t, bitset< 32 > >	code8b
	Map of 8-bit codes for each character.
unordered_map< uint8_t, bitset< 32 > >	code16b
	Map of 16-bit codes for each character.
unordered_map< uint8_t, bitset< 32 > >	code32b
	Map of 32-bit codes for each character.

Private Member Functions
unordered_map< uint8_t, uint64_t >	count_characters (const vector< uint8_t > &str)
	Counts the frequency of each byte in the input string.
unique_ptr< HuffmanNode >	create_tree (priority_queue< unique_ptr< HuffmanNode >, vector< unique_ptr< HuffmanNode > >, HuffmanNode::CompareNodes > &pq)
	Creates a Huffman tree from a given min-heap (priority queue).
priority_queue< unique_ptr< HuffmanNode >, vector< unique_ptr< HuffmanNode > >, HuffmanNode::CompareNodes >	create_min_heap ()
	Creates a min-heap of Huffman nodes from the frequency map.
void	create_code (const unique_ptr< HuffmanNode > &p, bitset< 32 > unique_code)
	Recursively generates the code for each character from the tree.
void	create_codes ()
	Initializes the code tables for all 8, 16, and 32-bit representations.
void	print_codes ()
	Prints all the generated codes to standard output.

Private Attributes
unordered_map< uint8_t, uint64_t >	frecuencies
	Stores the frequency of each byte (character) in the input.

Detailed Description

Constructs and manages a Huffman tree for encoding.

This class builds a Huffman tree from a byte vector, generates codes for each byte, and can encode input data using 8, 16, or 32-bit representations. It is optimized for educational demonstration purposes and supports visualizing and printing the generated codes.

Member Function Documentation

count_characters()

unordered_map< uint8_t, uint64_t > HuffmanTree::count_characters ( const vector< uint8_t > & str )

private

Counts the frequency of each byte in the input string.

Parameters

str	Vector of bytes to analyze.

Returns

Map from byte to frequency count.

Here is the caller graph for this function:

create_code()

void HuffmanTree::create_code ( const unique_ptr< HuffmanNode > & p, bitset< 32 > unique_code )

private

Recursively generates the code for each character from the tree.

Parameters

p	Pointer to current node.
unique_code	Current prefix code.

Here is the call graph for this function:

Here is the caller graph for this function:

create_codes()

void HuffmanTree::create_codes ( )

private

Initializes the code tables for all 8, 16, and 32-bit representations.

Here is the call graph for this function:

Here is the caller graph for this function:

create_min_heap()

priority_queue< unique_ptr< HuffmanNode >, vector< unique_ptr< HuffmanNode > >, HuffmanNode::CompareNodes > HuffmanTree::create_min_heap ( )

private

Creates a min-heap of Huffman nodes from the frequency map.

Returns

Priority queue containing leaf nodes for the tree.

Here is the caller graph for this function:

create_tree()

unique_ptr< HuffmanNode > HuffmanTree::create_tree ( priority_queue< unique_ptr< HuffmanNode >, vector< unique_ptr< HuffmanNode > >, HuffmanNode::CompareNodes > & pq )

private

Creates a Huffman tree from a given min-heap (priority queue).

Parameters

pq	A priority queue of Huffman nodes sorted by frequency.

Returns

Unique pointer to the root node of the created tree.

Here is the caller graph for this function:

encode_vec()

void HuffmanTree::encode_vec

(

vector< uint8_t > &

vec

)

Encodes a vector of bytes in-place using the Huffman codes.

Parameters

vec	Vector of bytes to encode.

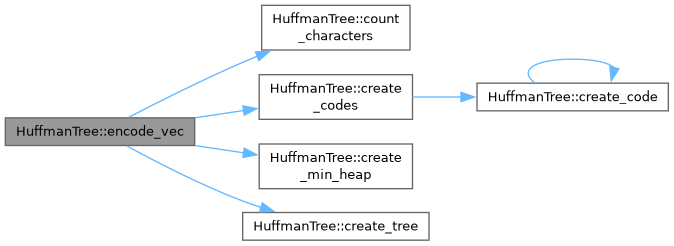

Here is the call graph for this function:

Here is the caller graph for this function:

encodeFile()

void HuffmanTree::encodeFile

(

const string &

filename

)

Reads a file and encodes its contents using the Huffman tree.

Parameters

filename

Path to the input file.

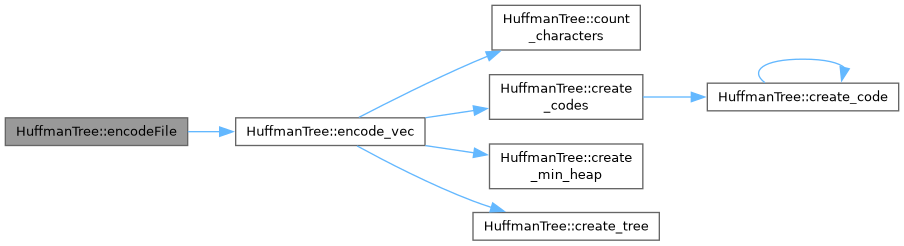

Here is the call graph for this function:

Here is the caller graph for this function:

print_codes()

void HuffmanTree::print_codes ( )

private

Prints all the generated codes to standard output.

Member Data Documentation

code16b

unordered_map<uint8_t, bitset<32> > HuffmanTree::code16b

Map of 16-bit codes for each character.

code32b

unordered_map<uint8_t, bitset<32> > HuffmanTree::code32b

Map of 32-bit codes for each character.

code8b

unordered_map<uint8_t, bitset<32> > HuffmanTree::code8b

Map of 8-bit codes for each character.

frecuencies

unordered_map<uint8_t, uint64_t> HuffmanTree::frecuencies

private

Stores the frequency of each byte (character) in the input.

Used to build the Huffman tree.

root

unique_ptr<HuffmanNode> HuffmanTree::root

Pointer to the root node of the Huffman tree.

---

The documentation for this class was generated from the following files:

• include/huffmantree/Huffman.hpp
• src/huffmantree/Huffman.cpp
